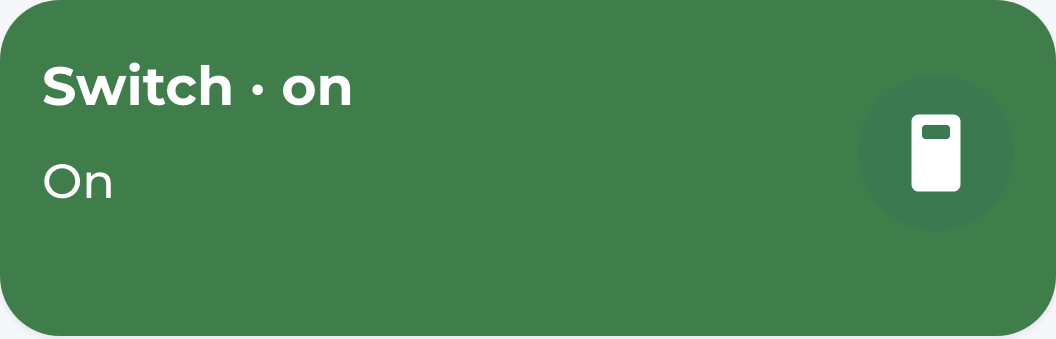

Switch Card

With the hc_switch_card you can control your switch. It gives the ability to also show the power consumption and a graph.

Usage

  - type: custom:marao-card
    template: hc_switch_card
    entity: <your switch entity>

Variables

Variable	Default	Required	Description
power_entity	/	No	The entity that shows the power consumption.
power_unit	Entity unit or W	No	The unit that will be shown next to the power consumption.
show_graph	false	No	If true, a graph will be shown as background. NOTE: It will not show if there is no Power Entity given!
graph_color	Theme text/accent color	No	The color will be used for the graph. Line, fill or both.
show_graph_line	true	No	If true, a line will be shown in the graph.
show_graph_fill	false	No	If true, the graph will be filled.
