Climate Card

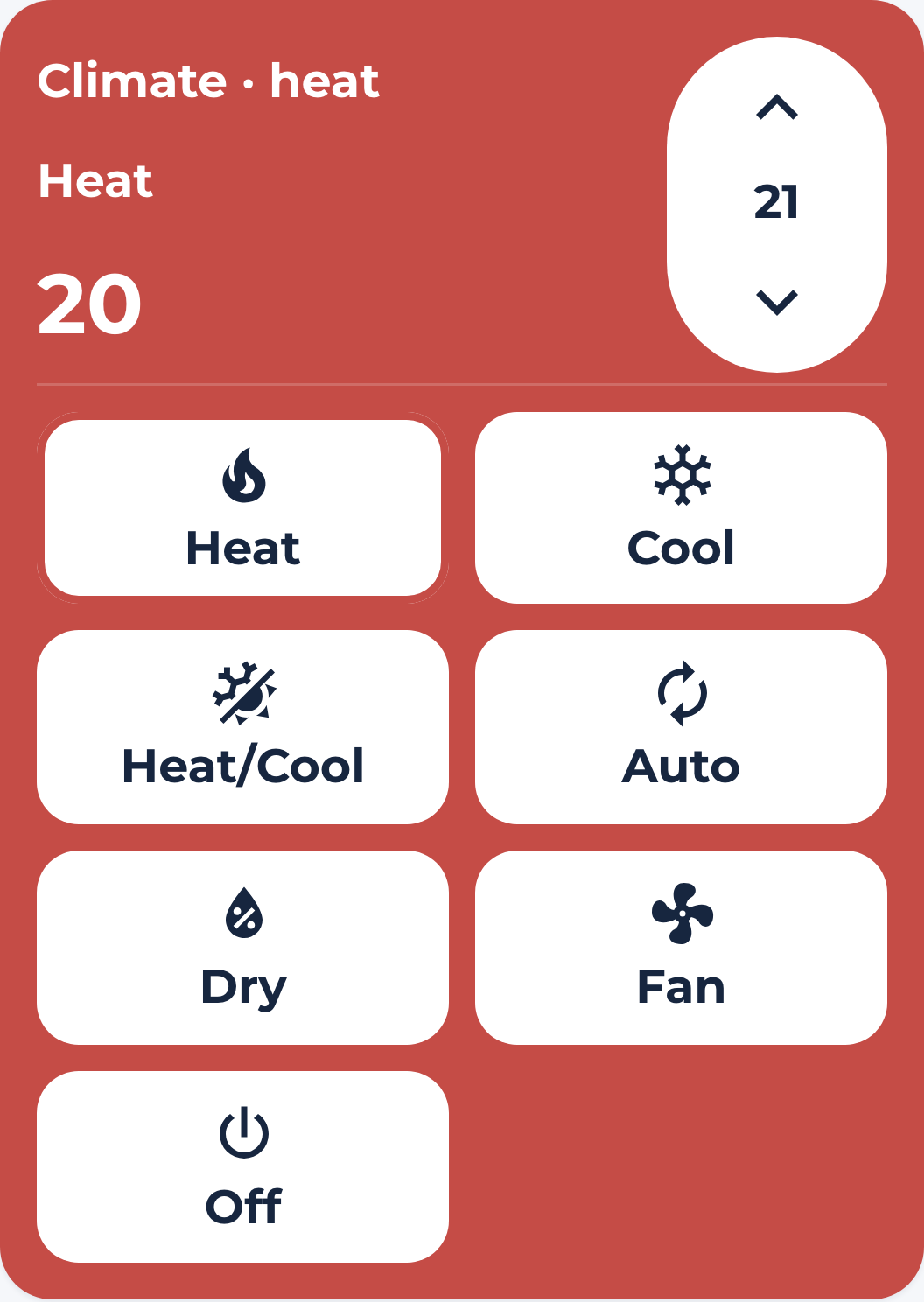

The hc_climate_card shows a large, unitless current temperature and a target temperature stepper. Its background identifies the active HVAC mode; off, unknown, and unavailable retain the neutral card background. When multiple HVAC modes are available, the mode buttons use representative icons and labels.
Usage
- type: custom:marao-card
template: hc_climate_card
entity: <climate entity>
Variables
| Variable | Default | Required | Description |
|---|---|---|---|
| show_mode_buttons | true in generated mode sheets | Show mode buttons on this card. | |
| mode_selector_hash | Empty | Open the configured mode popup from the card. | |
| setpoint_label | Localized target temperature | Accessible name for the target stepper. | |
| show_graph | false | Show a temperature history graph behind the card. | |
| graph_entity | Empty | Sensor entity supplying the graph. | |
| graph_color | Theme text/accent color | Graph line and fill color. |
State colors
| HVAC mode | Theme color |
|---|---|
| Heat / heating | --color-red |
| Cool / cooling | --color-blue |
| Heat/Cool | --color-purple |
| Auto | --color-gold |
| Dry / drying | --color-yellow |
| Fan only | --color-green |
